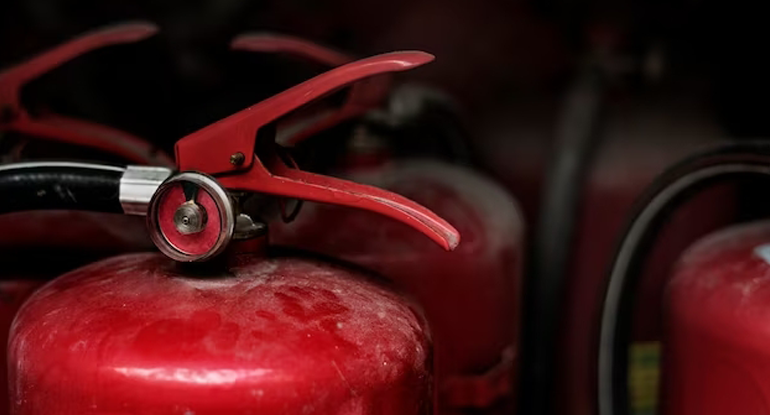

ABC (POWDER) TYPE EXTINGUISHERS
This Type of Extinguishers is used on A, B and C class of fire. it contains mono ammonium phosphate and nitrogen gas. rav fire services abc type extinguishers available in 2kg, 4kg and 6kg standard version.
- capacity : 2kg, 4kg, 6kg.
- standard is : 15683
- test pressure: 35 bar
- operating pressure: 15 bar
- operating temperature : -30° to +60°
Description
| Capacity | 2 KG | 4 KG | 6 KG | 9 KG |
|---|---|---|---|---|
| Fire Rating | 1A:21B | 2A:55B | 3A:89B | 4A:144B |
| Average discharge time | 14.0sec | 18.0sec | 21.0sec | 23.0sec |
| Jet Range | 2.5mt. | 3mt. | 4mt. | 5mt. |
| Filed Weight (Approx) | 3.4Kg. | 6.7Kg. | 9Kg. | 13.18Kg. |
| Empty Weight (Approx) | 1.4kg. | 2.7kg. | 3kg. | 4.18kg. |
| Operating Temperature | -30°C to 60°C | |||
| Working Pressure | 15 bar | 15 bar | 15 bar | 15 bar |
| Tested Pressure | 35 bar | 35 bar | 35 bar | 35 bar |
